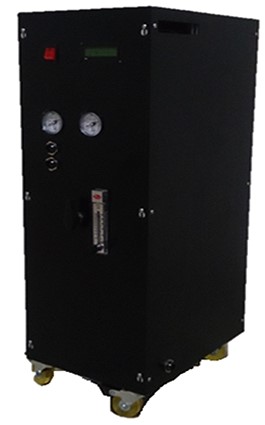

纖維吸附式乾燥機 Fiber Desiccant Dryer

操作原理 operating principle:
本纖維吸附式乾燥機由兩組纖維管柱所構成,藉由一組進行除濕動作, 另一組進行再生動作, 兩者交替循環 ,藉以連續不間斷產生乾燥氣體,如圖示。
The Fiber Desiccant Dryer comprises of two fiber columns, one column is in dehumidification, the other is in regeneration. When the one column finishes dehumidification, then is switched to regeneration procedure. The two columns alternate with each other to continuously produce dehumidified gas, please refer to figure on the left side.
　

●Maximum surface area for adsorbent 極高的吸附能力:
●Minimal pressure drop (1/100th) ~ energy efficient 極低壓差;
●No attrition, channeling, by pass within bed 不會有粉塵產生,不會有隧道效應;.
●Fast regeneration and energy saving再生速度快而且非常節能;
●Can remove multiple contaminants可以同時去除多種不純物;
●Custom made fibers可以客製化產品;
●Environmentally friendly solution綠色環保產品;

各種氣體中的水份去除 water removal from all kinds of gases):

N2, O2, H2, NH3, CO, CO2,...
CDA (Clean Dry Air)
NMHC = Non Methane Hydrocarbons C5-C30
Organics = Hydrocarbons C5-C30
THC = Total Hydrocarbons C1-C30
Arsine (AsH3) or Phosphine(PH3) Gas
Xenon, Neon, Krypton, Argon,...
Fluorinated Gases: [C2F6, C2H6, C3F8, C3H8, C2F4H2, C4F8, C4H10, CCl4,CF4, CH4, CHF3, SF6 ]
Corrosive and Specialty Gases: HCl, Cl2, BCl3, H2S, etc..
[B2H6, BCl3, CClH3, Cl2, CO2, GeCl4, GeH4, H2S, H2Se,HBr,HCl, N2O, NF3, NO, SiCl4, SiF4, SiH2Cl2, SiHCl3, SO2, CHClF2, BF3 ]

Customerized products are on request of different kinds of operating conditions(flow rate, operating pressure, contaminant removal, acid-resistant equipment,.....)

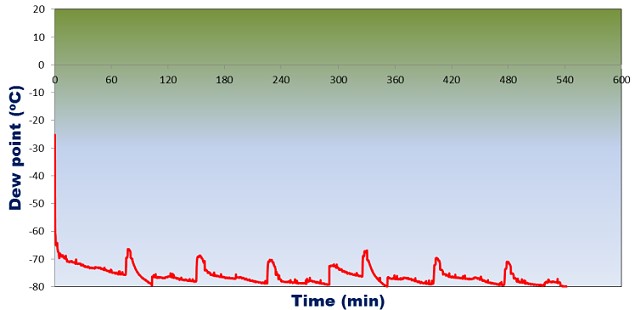

2015年新機 食品級除濕機 露點可達-60℃~-80℃，可過濾壓縮空氣中的油及粉塵粒子(1微米)，當露點-60℃時(水份10.68ppm)這樣乾燥空氣細菌無法生存。
